MAD Design Group / EcoSmart Fire

Gin 90 Dining Fire Table w/ Gas/LP Burner

In stock — ready to ship

$6,695.00
Application Outdoor
Application Outdoor

Gas burners can ONLY be used outdoors.

Color Natural
Color

Burner Finish Stainless Steel

Fire Screen (Optional for Concrete Models)
-- Please Select --

ESF.5.A.G.L1520

EcoSmart Fire L1520 Fire Screen

EcoSmart Fire L1520 Fire Screen

Five feet of toughened glass for the longest burner channel we stock. On a Gin 90 the fire is the length of the table, and this is what keeps it steady across all of it.

Key features

A flame that stands still
Moving air is what makes an outdoor flame wander, gutter and burn through a fill faster than it should. Four panels of glass around it and the fire behaves the way it does indoors.
Glass chosen for how it fails
Ultra-low-iron toughened glass, specified to break into small blunt pieces rather than shards. On a table people lean over, that is the property that matters most.
Nothing to fix, nothing to store
It sits over the opening under its own weight. Lift it off when you want the fire open, put it back when the wind gets up.

Specifications

Dimensions59.8 x 13.4 x 9.8 in
Weight23.1 lb
MaterialToughened ultra-low-iron glass
UseIndoor or outdoor
FitsGin 90 Dining, Gin 90 Bar

Made for the Gin 90 platform. We stock both heights:

Downloads

Download Spec Sheet
Glass Cover Plate
-- Please Select --

ESF.5.A.CP.L65

EcoSmart Fire L65 Glass Cover Plate

EcoSmart Fire L65 Glass Cover Plate

The Gin 90 plate. On a bar or dining table the burner channel is the middle of the surface, which is exactly where people want to put things down when the fire is off.

Key features

Two pieces of furniture
A fire table earns its space for a few hours an evening. Drop the plate over the burner opening and the other twenty hours are a flat, continuous surface you can put a glass down on.
Smoke grey, not clear
The tint hides the burner tray underneath instead of framing it, so the covered table reads as one surface rather than as a fire table with a lid on.
Toughened throughout
The same grade of glass as our fire screens, rated for the same indoor and outdoor use, with no coating to wear off.
Weatherproof it properly
The plate covers the opening; it does not seal it. Fit the XL900 Burner Cover underneath first and the burner stays dry through a winter as well as a rain shower.

Specifications

Dimensions23.7 x 19.6 x 5.8 in
Weight13.7 lb
MaterialSmoke grey toughened glass
UseIndoor or outdoor
FitsGin 90 Dining, Gin 90 Bar

On the ethanol versions of these tables, the cover that goes under it:

Downloads

Download Spec Sheet
Tank Concrete Stools
-- Please Select --

ESF.2.A.TAN.NA

EcoSmart Fire Tank Concrete Stool - Natural

EcoSmart Fire Tank Concrete Stool - Natural

The pale cast. Natural is the finish that reads as stone rather than as concrete, and it is the one that sits quietly next to a Natural surround instead of matching it exactly.

Key features

A stool that hides a bottle
It is hollow. On a gas/LP fire table the propane bottle goes inside it and the tank stops being the thing you arrange the seating around.
Or just a stool
On an ethanol table there is no bottle to hide, and it is still forty-four pounds of cast concrete at seating height - somewhere to sit, or to put a tray down.
Cast, not moulded on
Fluid concrete through the whole section, in the same finishes as the tables, so a stool and a surround bought together age at the same rate.
Heavy on purpose
Forty-four pounds does not move in wind and does not walk across a deck when someone stands up from it.

Specifications

Dimensions17.7 x 17.7 x 20.9 in
Weight44.1 lb
MaterialFluid concrete
UseIndoor or outdoor
FinishNatural

Downloads

Download Spec Sheet

ESF.2.A.TAN.GH

EcoSmart Fire Tank Concrete Stool - Graphite

EcoSmart Fire Tank Concrete Stool - Graphite

The dark cast. Graphite disappears at dusk, which is when a fire table is doing its work and when you would rather look at the flame than at the furniture around it.

Key features

A stool that hides a bottle
It is hollow. On a gas/LP fire table the propane bottle goes inside it and the tank stops being the thing you arrange the seating around.
Or just a stool
On an ethanol table there is no bottle to hide, and it is still forty-four pounds of cast concrete at seating height - somewhere to sit, or to put a tray down.
Cast, not moulded on
Fluid concrete through the whole section, in the same finishes as the tables, so a stool and a surround bought together age at the same rate.
Heavy on purpose
Forty-four pounds does not move in wind and does not walk across a deck when someone stands up from it.

Specifications

Dimensions17.7 x 17.7 x 20.9 in
Weight44.1 lb
MaterialFluid concrete
UseIndoor or outdoor
FinishGraphite

Downloads

Download Spec Sheet

ESF.2.A.TAN.BO

EcoSmart Fire Tank Concrete Stool - Bone

EcoSmart Fire Tank Concrete Stool - Bone

The warmest of the three. Bone is a shade off white, which holds its own against teak and against a pale stone terrace where Natural can read as grey.

Key features

A stool that hides a bottle
It is hollow. On a gas/LP fire table the propane bottle goes inside it and the tank stops being the thing you arrange the seating around.
Or just a stool
On an ethanol table there is no bottle to hide, and it is still forty-four pounds of cast concrete at seating height - somewhere to sit, or to put a tray down.
Cast, not moulded on
Fluid concrete through the whole section, in the same finishes as the tables, so a stool and a surround bought together age at the same rate.
Heavy on purpose
Forty-four pounds does not move in wind and does not walk across a deck when someone stands up from it.

Specifications

Dimensions17.7 x 17.7 x 20.9 in
Weight44.1 lb
MaterialFluid concrete
UseIndoor or outdoor
FinishBone

Downloads

Download Spec Sheet

Optional add-ons need JavaScript to be added alongside this product. With JavaScript disabled you can still order the item above, then add any accessories from their own pages.

Questions?

Call (936) 939-6195 or email support@avenzaoutdoor.com.
Monday to Friday, 9:00 AM – 5:00 PM CST.

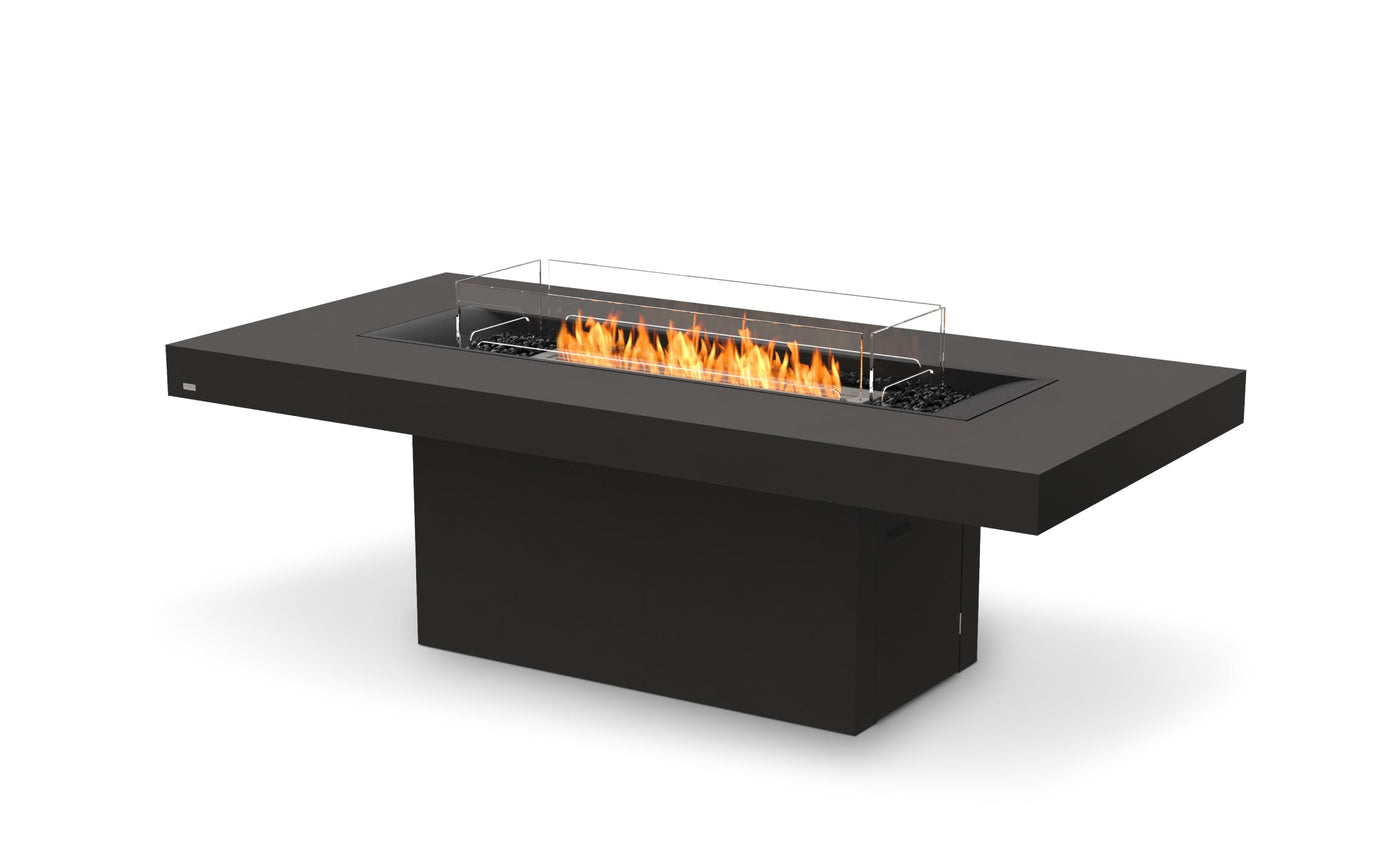

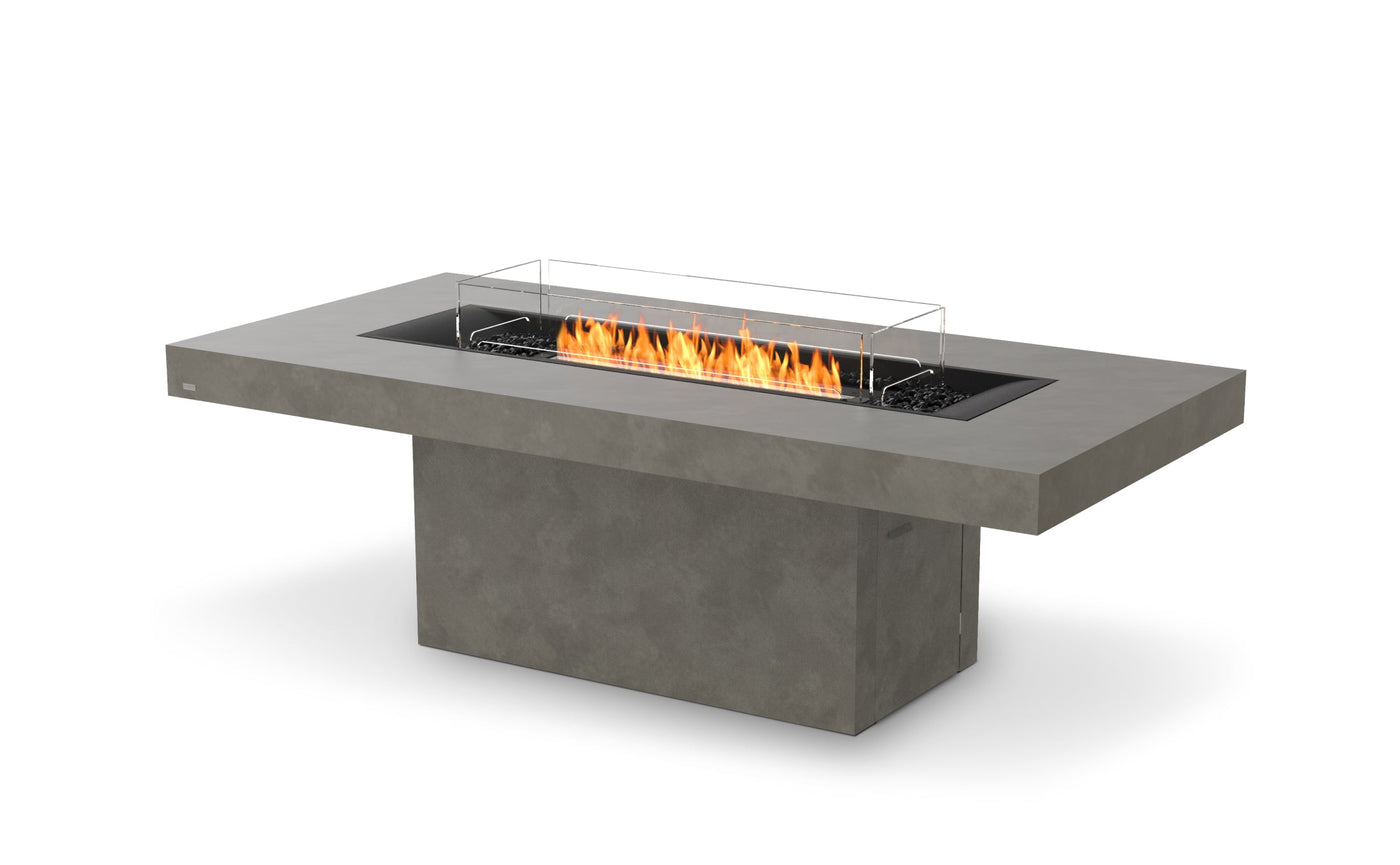

Gin 90 Dining Fire Table w/ Gas/LP Burner

Perfectly proportioned as a functional, freestanding dining table, the Gin 90 Dining fire table adds a sense of luxury and style to indoor and outdoor spaces. Designed with room for dining chairs to be placed around it, this stunning model features an elongated flame as its centrepiece — an impressive way to gather family or guests in an intimate and stylish setting.

The generous top offers ample space for glassware, plates and serving pieces on either side of the fire, while the pedestal base is designed to accommodate propane bottle storage within it. Available in Ethanol, Natural Gas or Liquid Propane, the Gin 90 Dining comes with a toughened glass screen, decorative glass media and the Winter Bag/Summer Cover as standard features, and levels on 360º height-adjustable articulating feet.

Dining by open flame is a rare pleasure. The Gin 90 Dining makes it an everyday possibility.

EcoSmart's burner technology allows the entire collection to move indoors or out depending on the fuel selected: plant-based, UL Listed ethanol is certified for interior and exterior installation, while natural gas and liquid propane deliver greater heat in outdoor settings. Quality materials and toughened glass give peace of mind and make these tables the product of choice for many leading architects and designers.

Long after a meal ends, the fire keeps the table occupied. Guests stay seated, the evening extends itself, and a dining table becomes the best room in the house.

That is precisely what these pieces are built to do.

Included Accessories

Decorative Glass Charcoal

Decorative Glass Charcoal

Fuel Efficiency

Volume Capacity
N/A — LP or natural gas supply
Heats on Average
Outdoor use only
Minimal Room
Outdoor use only
Thermal Output
65,000 BTU/h · 19 kW
Burn Time
8–20 h (LP) · Unlimited (NG)

Figures are indicative. Actual performance varies with the model purchased, the installation environment, and the composition of the e-NRG bioethanol available in your region.

Specifications

Full Specifications

Full Specifications
Model Gin 90 Dining
Type Fire Table
Fuel Liquid Propane or Natural Gas
Burner LP/NG
Burner Finish Grade 304 Stainless Steel
Surround Material Fluid™ Concrete
Colours Natural, Graphite
Application Outdoor only
Thermal Output 65,000 BTU/h · 19 kW
Fuel Capacity N/A — LP or natural gas supply
Burn Time 8–20 h (LP) · Unlimited (NG)
Heats on Average Outdoor use only
Certification UL/ULC listed to ANSI Z21.97-2017 and CSA 2.41-2017 · Gas Appliance Regulation 2016/426 (CE / UKCA)
Manufacturer MAD Design Group / EcoSmart Fire

Dimensions

Dimensions
Overall Length 89.4 in [2,270 mm]
Overall Width 43.2 in [1,100 mm]
Overall Height 29.3 in [745 mm]
Weight — Complete 447.1 lb [203 kg]

Technical Drawings

Gin 90 Dining Fire Table w/ Gas/LP Burner — Front View technical drawing
Front View
Gin 90 Dining Fire Table w/ Gas/LP Burner — Top View technical drawing
Top View
Gin 90 Dining Fire Table w/ Gas/LP Burner — Side View technical drawing
Side View

Downloads

Read the manual in full before operating the burner. Verify the model's physical dimensions against your cut-out dimensions before installation begins.
