MAD Design Group / EcoSmart Fire

Manhattan 50 Fire Table w/ Gas/LP Burner

In stock — ready to ship

$2,995.00
Application Outdoor
Application Outdoor

Gas burners can ONLY be used outdoors.

Color Natural
Color

Burner Finish Stainless Steel

Fire Screen (Optional for Concrete Models)
-- Please Select --

ESF.5.A.G.S500

EcoSmart Fire S500 Fire Screen

EcoSmart Fire S500 Fire Screen

Wind is the reason an outdoor flame never looks quite settled. The S500 puts toughened glass on four sides of it and gives you back the still, upright flame you were picturing when you bought the table.

Key features

A flame that stands still
Moving air is what makes an outdoor flame wander, gutter and burn through a fill faster than it should. Four panels of glass around it and the fire behaves the way it does indoors.
Glass chosen for how it fails
Ultra-low-iron toughened glass, specified to break into small blunt pieces rather than shards. On a table people lean over, that is the property that matters most.
Nothing to fix, nothing to store
It sits over the opening under its own weight. Lift it off when you want the fire open, put it back when the wind gets up.

Specifications

Dimensions20.9 x 20.9 x 9.8 in
Weight13.6 lb
MaterialToughened ultra-low-iron glass
UseIndoor or outdoor
FitsBase 40, Manhattan 50

Sized for two tables in our range. The gas/LP versions of the same models take the same screen:

Downloads

Download Spec Sheet
Glass Cover Plate
-- Please Select --

ESF.5.A.CP.S22

EcoSmart Fire S22 Glass Cover Plate

EcoSmart Fire S22 Glass Cover Plate

A fire table is furniture for most of the year and a fire for the rest of it. The S22 is what covers the difference on a Base 40 or a Manhattan 50.

Key features

Two pieces of furniture
A fire table earns its space for a few hours an evening. Drop the plate over the burner opening and the other twenty hours are a flat, continuous surface you can put a glass down on.
Smoke grey, not clear
The tint hides the burner tray underneath instead of framing it, so the covered table reads as one surface rather than as a fire table with a lid on.
Toughened throughout
The same grade of glass as our fire screens, rated for the same indoor and outdoor use, with no coating to wear off.
Weatherproof it properly
The plate covers the opening; it does not seal it. Fit the AB8 Burner Cover underneath first and the burner stays dry through a winter as well as a rain shower.

Specifications

Dimensions22.6 x 22.6 x 0.2 in
Weight6.4 lb
MaterialSmoke grey toughened glass
UseIndoor or outdoor
FitsBase 40, Manhattan 50

On the ethanol versions of these tables, the cover that goes under it:

Downloads

Download Spec Sheet
Tank Concrete Stools
-- Please Select --

ESF.2.A.TAN.NA

EcoSmart Fire Tank Concrete Stool - Natural

EcoSmart Fire Tank Concrete Stool - Natural

The pale cast. Natural is the finish that reads as stone rather than as concrete, and it is the one that sits quietly next to a Natural surround instead of matching it exactly.

Key features

A stool that hides a bottle
It is hollow. On a gas/LP fire table the propane bottle goes inside it and the tank stops being the thing you arrange the seating around.
Or just a stool
On an ethanol table there is no bottle to hide, and it is still forty-four pounds of cast concrete at seating height - somewhere to sit, or to put a tray down.
Cast, not moulded on
Fluid concrete through the whole section, in the same finishes as the tables, so a stool and a surround bought together age at the same rate.
Heavy on purpose
Forty-four pounds does not move in wind and does not walk across a deck when someone stands up from it.

Specifications

Dimensions17.7 x 17.7 x 20.9 in
Weight44.1 lb
MaterialFluid concrete
UseIndoor or outdoor
FinishNatural

Downloads

Download Spec Sheet

ESF.2.A.TAN.GH

EcoSmart Fire Tank Concrete Stool - Graphite

EcoSmart Fire Tank Concrete Stool - Graphite

The dark cast. Graphite disappears at dusk, which is when a fire table is doing its work and when you would rather look at the flame than at the furniture around it.

Key features

A stool that hides a bottle
It is hollow. On a gas/LP fire table the propane bottle goes inside it and the tank stops being the thing you arrange the seating around.
Or just a stool
On an ethanol table there is no bottle to hide, and it is still forty-four pounds of cast concrete at seating height - somewhere to sit, or to put a tray down.
Cast, not moulded on
Fluid concrete through the whole section, in the same finishes as the tables, so a stool and a surround bought together age at the same rate.
Heavy on purpose
Forty-four pounds does not move in wind and does not walk across a deck when someone stands up from it.

Specifications

Dimensions17.7 x 17.7 x 20.9 in
Weight44.1 lb
MaterialFluid concrete
UseIndoor or outdoor
FinishGraphite

Downloads

Download Spec Sheet

ESF.2.A.TAN.BO

EcoSmart Fire Tank Concrete Stool - Bone

EcoSmart Fire Tank Concrete Stool - Bone

The warmest of the three. Bone is a shade off white, which holds its own against teak and against a pale stone terrace where Natural can read as grey.

Key features

A stool that hides a bottle
It is hollow. On a gas/LP fire table the propane bottle goes inside it and the tank stops being the thing you arrange the seating around.
Or just a stool
On an ethanol table there is no bottle to hide, and it is still forty-four pounds of cast concrete at seating height - somewhere to sit, or to put a tray down.
Cast, not moulded on
Fluid concrete through the whole section, in the same finishes as the tables, so a stool and a surround bought together age at the same rate.
Heavy on purpose
Forty-four pounds does not move in wind and does not walk across a deck when someone stands up from it.

Specifications

Dimensions17.7 x 17.7 x 20.9 in
Weight44.1 lb
MaterialFluid concrete
UseIndoor or outdoor
FinishBone

Downloads

Download Spec Sheet

Optional add-ons need JavaScript to be added alongside this product. With JavaScript disabled you can still order the item above, then add any accessories from their own pages.

Questions?

Call (936) 939-6195 or email support@avenzaoutdoor.com.
Monday to Friday, 9:00 AM – 5:00 PM CST.

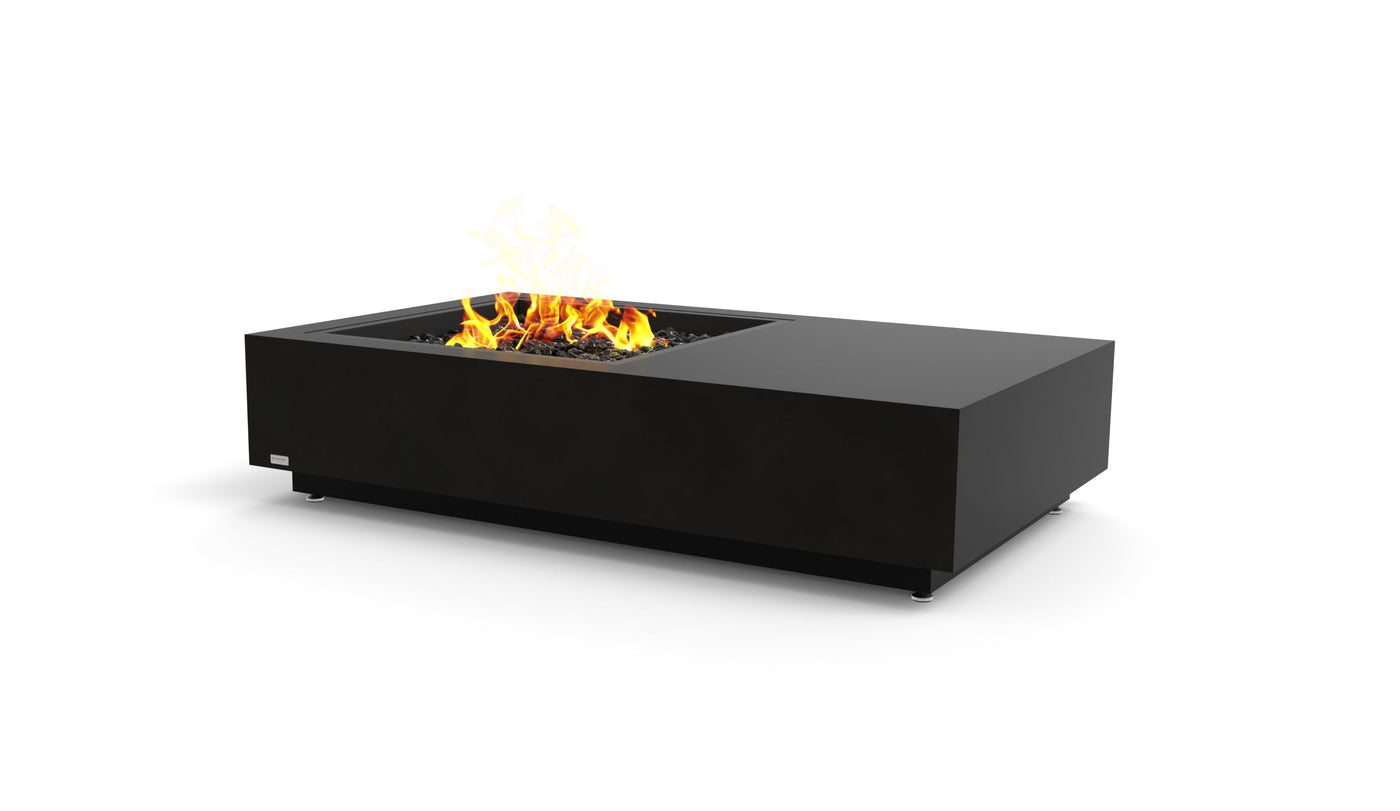

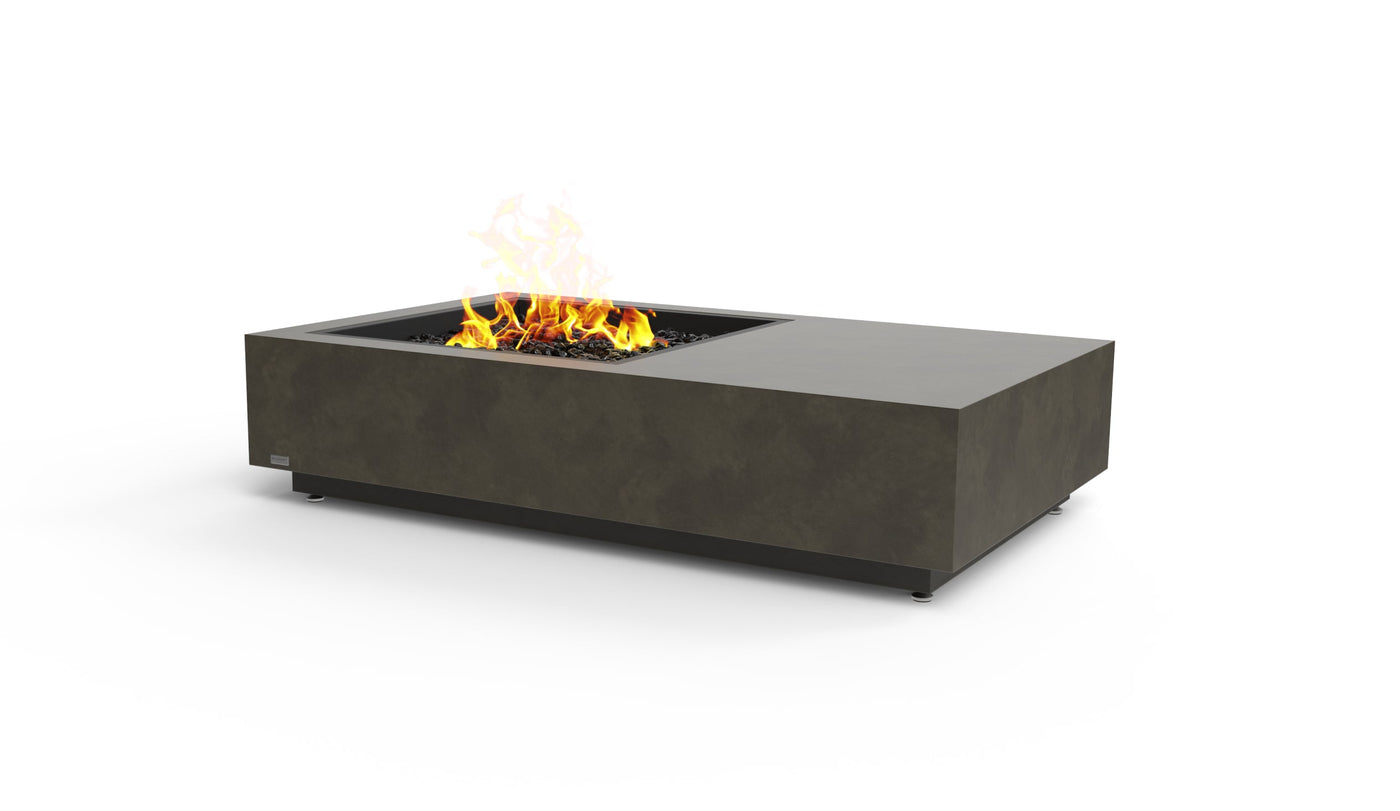

Manhattan 50 Fire Table w/ Gas/LP Burner

Taking its cues from one of the world's most densely populated cities — where real estate prices are sky-high and square footage comes at a premium — the Manhattan 50 is a fire table that combines ingenuity with functionality. It knows how to make the most of a small space.

The long, low rectangular body sets a ribbon of flame at one end and leaves the remainder as usable surface for drinks and plates of food. Crafted from weather-resistant Fluid™ Concrete, an incredibly strong yet relatively lightweight material with a stain and impact-resistant barrier that withstands extreme conditions and long UV exposure, it is available in Ethanol, Natural Gas or Liquid Propane and levels precisely on 360º articulating feet.

Compact in footprint and generous in effect, the Manhattan 50 brings genuine fire to balconies, courtyards and living rooms where a conventional fire pit was never an option.

Versatility of this kind is built into EcoSmart's burner technology. Every model can be specified in plant-based ethanol, certified for indoor as well as outdoor use, or in natural gas or liquid propane for the robust heat of an outdoor installation. With ethanol or liquid propane, no hard utility connection is required at all.

The flame becomes the centrepiece and the table does the rest — bringing people together, holding the drinks, and making a modest space feel considerably larger than its dimensions suggest.

Fire tables are more than accents. They are a destination, and they make entertaining ever so easy.

Included Accessories

Decorative Glass Charcoal

Decorative Glass Charcoal

Fuel Efficiency

Volume Capacity
N/A — LP or natural gas supply
Heats on Average
Outdoor use only
Minimal Room
Outdoor use only
Thermal Output
65,000 BTU/h · 19 kW
Burn Time
8–20 h (LP) · Unlimited (NG)

Figures are indicative. Actual performance varies with the model purchased, the installation environment, and the composition of the e-NRG bioethanol available in your region.

Specifications

Full Specifications

Full Specifications
Model Manhattan 50
Type Fire Table
Fuel Liquid Propane or Natural Gas
Burner LP/NG
Burner Finish Grade 304 Stainless Steel
Surround Material Fluid™ Concrete
Colours Natural, Graphite
Application Outdoor only
Thermal Output 65,000 BTU/h · 19 kW
Fuel Capacity N/A — LP or natural gas supply
Burn Time 8–20 h (LP) · Unlimited (NG)
Heats on Average Outdoor use only
Certification UL/ULC listed to ANSI Z21.97-2017 and CSA 2.41-2017 · Gas Appliance Regulation 2016/426 (CE / UKCA)
Manufacturer MAD Design Group / EcoSmart Fire

Dimensions

Dimensions
Overall Length 50 in [1,270 mm]
Overall Width 30 in [760 mm]
Overall Height 11.7 in [295 mm]
Weight — Complete 118 lb [53.7 kg]

Technical Drawings

Manhattan 50 Fire Table w/ Gas/LP Burner — Front View technical drawing
Front View
Manhattan 50 Fire Table w/ Gas/LP Burner — Top View technical drawing
Top View
Manhattan 50 Fire Table w/ Gas/LP Burner — Side View technical drawing
Side View

Downloads

Read the manual in full before operating the burner. Verify the model's physical dimensions against your cut-out dimensions before installation begins.
