MAD Design Group / EcoSmart Fire

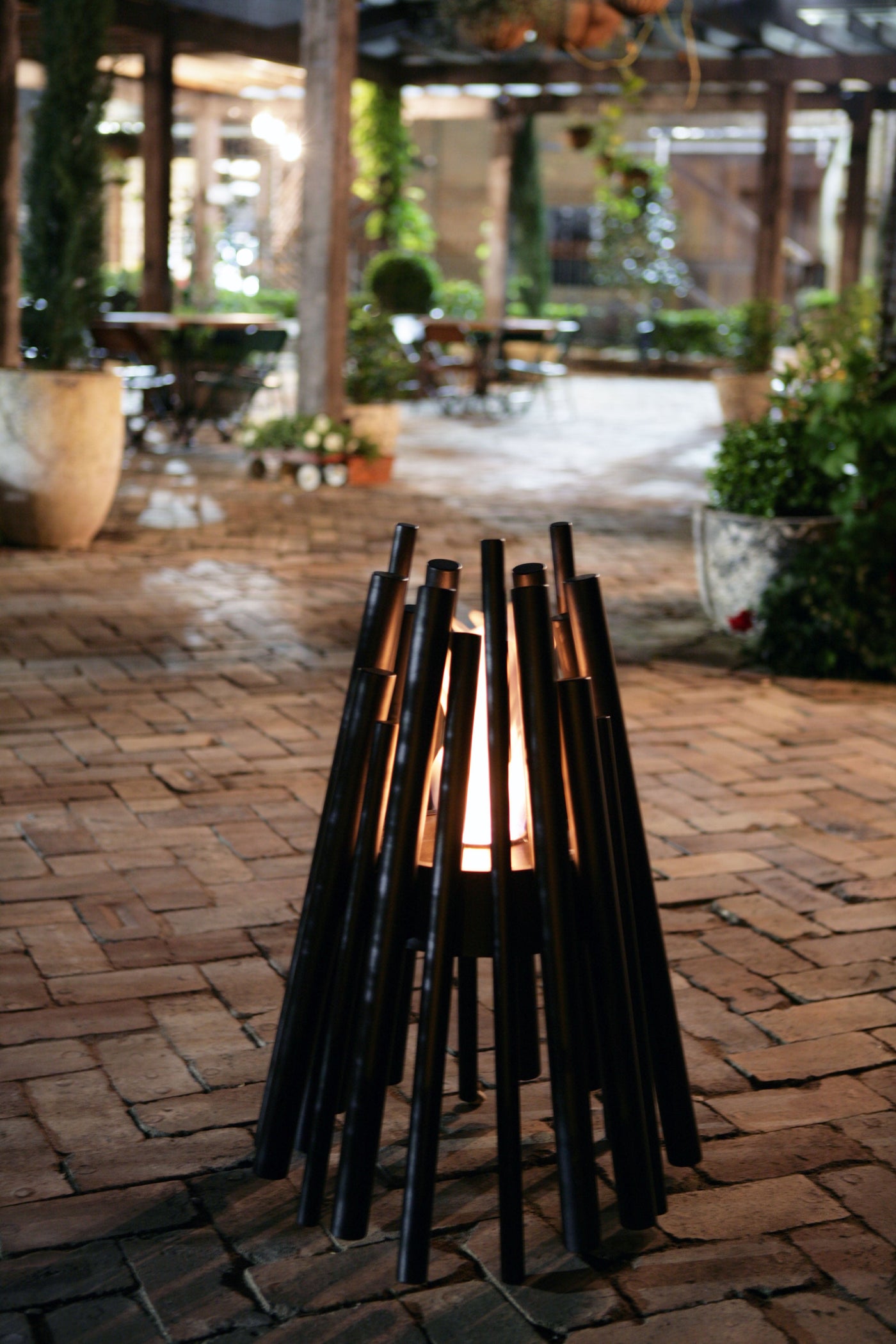

Stix Fire Pit w/ Ethanol Burner

In stock — ready to ship

$2,395.00
Application Outdoor
Application Outdoor

This model's design is certified for outdoor use only.

Color Black
Color

Burner Finish Stainless Steel

e-NRG Bioethanol Fuel
-- Please Select --

ENR.QTS.16-1CS

e-NRG Bioethanol Fuel - 1 Case / 16 Quarts

One case, four gallons, sixteen quart bottles. On an AB8 burner that is roughly six or seven evenings; on the smallest burners in the range it is most of a season.

Key features

96 to 97 percent
The alcohol content is the whole specification. Below it the flame gets lazy and the burn shortens; above it the fuel stops being stable to handle. e-NRG is blended to sit in that band every time.
Heat, water vapour and carbon dioxide
That is the complete list of what leaves the burner. No smoke, no soot, no ash, and nothing to sweep out of the table in the morning.
Scent at either end only
You will notice it when you light the burner and when you put it out. In between there is nothing to smell, which is the difference between sitting upwind and not caring where you sit.
A flame arrester in every bottle
The bottle is fitted with a device that stops fuel igniting if it meets a spark or a flame while you are pouring. Refuelling is the moment that goes wrong, so it is the moment worth engineering.
Certified where it is sold
UL 1370 in the United States, EN 16647 in Europe. Using anything else in an EcoSmart burner voids the warranty and the manufacturer's liability with it.

Specifications

Cases1
Volume4 gallons [16 quarts]
Alcohol content96-97% by volume
BottleQuart bottles, with flame arrester
Consumption0.08-0.29 gal/h depending on burner and setting
Burn time5 to 14 hours per fill, by burner size
VentilationMinimum 200 ft3 of air per 1,000 BTU/h of appliance rating
CertificationUL 1370 (US), EN 16647 (EU)

Downloads

[SPEC SHEET DOWNLOAD]

ENR.QTS.16-2CS

e-NRG Bioethanol Fuel - 2 Cases / 32 Quarts

Two cases. The size most people settle on after the first summer, once they know how often they actually light it.

Key features

96 to 97 percent
The alcohol content is the whole specification. Below it the flame gets lazy and the burn shortens; above it the fuel stops being stable to handle. e-NRG is blended to sit in that band every time.
Heat, water vapour and carbon dioxide
That is the complete list of what leaves the burner. No smoke, no soot, no ash, and nothing to sweep out of the table in the morning.
Scent at either end only
You will notice it when you light the burner and when you put it out. In between there is nothing to smell, which is the difference between sitting upwind and not caring where you sit.
A flame arrester in every bottle
The bottle is fitted with a device that stops fuel igniting if it meets a spark or a flame while you are pouring. Refuelling is the moment that goes wrong, so it is the moment worth engineering.
Certified where it is sold
UL 1370 in the United States, EN 16647 in Europe. Using anything else in an EcoSmart burner voids the warranty and the manufacturer's liability with it.

Specifications

Cases2
Volume8 gallons [32 quarts]
Alcohol content96-97% by volume
BottleQuart bottles, with flame arrester
Consumption0.08-0.29 gal/h depending on burner and setting
Burn time5 to 14 hours per fill, by burner size
VentilationMinimum 200 ft3 of air per 1,000 BTU/h of appliance rating
CertificationUL 1370 (US), EN 16647 (EU)

Downloads

[SPEC SHEET DOWNLOAD]

ENR.QTS.16-3CS

e-NRG Bioethanol Fuel - 3 Cases / 48 Quarts

Three cases - twelve gallons. Past the point where you think about fuel before deciding whether to light the table.

Key features

96 to 97 percent
The alcohol content is the whole specification. Below it the flame gets lazy and the burn shortens; above it the fuel stops being stable to handle. e-NRG is blended to sit in that band every time.
Heat, water vapour and carbon dioxide
That is the complete list of what leaves the burner. No smoke, no soot, no ash, and nothing to sweep out of the table in the morning.
Scent at either end only
You will notice it when you light the burner and when you put it out. In between there is nothing to smell, which is the difference between sitting upwind and not caring where you sit.
A flame arrester in every bottle
The bottle is fitted with a device that stops fuel igniting if it meets a spark or a flame while you are pouring. Refuelling is the moment that goes wrong, so it is the moment worth engineering.
Certified where it is sold
UL 1370 in the United States, EN 16647 in Europe. Using anything else in an EcoSmart burner voids the warranty and the manufacturer's liability with it.

Specifications

Cases3
Volume12 gallons [48 quarts]
Alcohol content96-97% by volume
BottleQuart bottles, with flame arrester
Consumption0.08-0.29 gal/h depending on burner and setting
Burn time5 to 14 hours per fill, by burner size
VentilationMinimum 200 ft3 of air per 1,000 BTU/h of appliance rating
CertificationUL 1370 (US), EN 16647 (EU)

Downloads

[SPEC SHEET DOWNLOAD]

ENR.QTS.16-4CS

e-NRG Bioethanol Fuel - 4 Cases / 64 Quarts

Four cases. Sixteen gallons is a long burner running most weekends from spring through to autumn without a reorder.

Key features

96 to 97 percent
The alcohol content is the whole specification. Below it the flame gets lazy and the burn shortens; above it the fuel stops being stable to handle. e-NRG is blended to sit in that band every time.
Heat, water vapour and carbon dioxide
That is the complete list of what leaves the burner. No smoke, no soot, no ash, and nothing to sweep out of the table in the morning.
Scent at either end only
You will notice it when you light the burner and when you put it out. In between there is nothing to smell, which is the difference between sitting upwind and not caring where you sit.
A flame arrester in every bottle
The bottle is fitted with a device that stops fuel igniting if it meets a spark or a flame while you are pouring. Refuelling is the moment that goes wrong, so it is the moment worth engineering.
Certified where it is sold
UL 1370 in the United States, EN 16647 in Europe. Using anything else in an EcoSmart burner voids the warranty and the manufacturer's liability with it.

Specifications

Cases4
Volume16 gallons [64 quarts]
Alcohol content96-97% by volume
BottleQuart bottles, with flame arrester
Consumption0.08-0.29 gal/h depending on burner and setting
Burn time5 to 14 hours per fill, by burner size
VentilationMinimum 200 ft3 of air per 1,000 BTU/h of appliance rating
CertificationUL 1370 (US), EN 16647 (EU)

Downloads

[SPEC SHEET DOWNLOAD]

ENR.QTS.16-5CS

e-NRG Bioethanol Fuel - 5 Cases / 80 Quarts

Five cases. For a long burner, a busy terrace, or somewhere that gets genuinely cold enough that the fire is the reason people stay outside.

Key features

96 to 97 percent
The alcohol content is the whole specification. Below it the flame gets lazy and the burn shortens; above it the fuel stops being stable to handle. e-NRG is blended to sit in that band every time.
Heat, water vapour and carbon dioxide
That is the complete list of what leaves the burner. No smoke, no soot, no ash, and nothing to sweep out of the table in the morning.
Scent at either end only
You will notice it when you light the burner and when you put it out. In between there is nothing to smell, which is the difference between sitting upwind and not caring where you sit.
A flame arrester in every bottle
The bottle is fitted with a device that stops fuel igniting if it meets a spark or a flame while you are pouring. Refuelling is the moment that goes wrong, so it is the moment worth engineering.
Certified where it is sold
UL 1370 in the United States, EN 16647 in Europe. Using anything else in an EcoSmart burner voids the warranty and the manufacturer's liability with it.

Specifications

Cases5
Volume20 gallons [80 quarts]
Alcohol content96-97% by volume
BottleQuart bottles, with flame arrester
Consumption0.08-0.29 gal/h depending on burner and setting
Burn time5 to 14 hours per fill, by burner size
VentilationMinimum 200 ft3 of air per 1,000 BTU/h of appliance rating
CertificationUL 1370 (US), EN 16647 (EU)

Downloads

[SPEC SHEET DOWNLOAD]

ENR.QTS.16-6CS

e-NRG Bioethanol Fuel - 6 Cases / 96 Quarts

Six cases. Ordering at this size is usually a second fire feature rather than a heavier habit on the first one.

Key features

96 to 97 percent
The alcohol content is the whole specification. Below it the flame gets lazy and the burn shortens; above it the fuel stops being stable to handle. e-NRG is blended to sit in that band every time.
Heat, water vapour and carbon dioxide
That is the complete list of what leaves the burner. No smoke, no soot, no ash, and nothing to sweep out of the table in the morning.
Scent at either end only
You will notice it when you light the burner and when you put it out. In between there is nothing to smell, which is the difference between sitting upwind and not caring where you sit.
A flame arrester in every bottle
The bottle is fitted with a device that stops fuel igniting if it meets a spark or a flame while you are pouring. Refuelling is the moment that goes wrong, so it is the moment worth engineering.
Certified where it is sold
UL 1370 in the United States, EN 16647 in Europe. Using anything else in an EcoSmart burner voids the warranty and the manufacturer's liability with it.

Specifications

Cases6
Volume24 gallons [96 quarts]
Alcohol content96-97% by volume
BottleQuart bottles, with flame arrester
Consumption0.08-0.29 gal/h depending on burner and setting
Burn time5 to 14 hours per fill, by burner size
VentilationMinimum 200 ft3 of air per 1,000 BTU/h of appliance rating
CertificationUL 1370 (US), EN 16647 (EU)

Downloads

[SPEC SHEET DOWNLOAD]

ENR.QTS.16-7CS

e-NRG Bioethanol Fuel - 7 Cases / 112 Quarts

Seven cases, a hundred and twelve quarts. The largest pack we hold, and the one that makes sense for venues rather than terraces.

Key features

96 to 97 percent
The alcohol content is the whole specification. Below it the flame gets lazy and the burn shortens; above it the fuel stops being stable to handle. e-NRG is blended to sit in that band every time.
Heat, water vapour and carbon dioxide
That is the complete list of what leaves the burner. No smoke, no soot, no ash, and nothing to sweep out of the table in the morning.
Scent at either end only
You will notice it when you light the burner and when you put it out. In between there is nothing to smell, which is the difference between sitting upwind and not caring where you sit.
A flame arrester in every bottle
The bottle is fitted with a device that stops fuel igniting if it meets a spark or a flame while you are pouring. Refuelling is the moment that goes wrong, so it is the moment worth engineering.
Certified where it is sold
UL 1370 in the United States, EN 16647 in Europe. Using anything else in an EcoSmart burner voids the warranty and the manufacturer's liability with it.

Specifications

Cases7
Volume28 gallons [112 quarts]
Alcohol content96-97% by volume
BottleQuart bottles, with flame arrester
Consumption0.08-0.29 gal/h depending on burner and setting
Burn time5 to 14 hours per fill, by burner size
VentilationMinimum 200 ft3 of air per 1,000 BTU/h of appliance rating
CertificationUL 1370 (US), EN 16647 (EU)

Downloads

[SPEC SHEET DOWNLOAD]
Burner Cover (Outdoor Models)
-- Please Select --

ESF.5.A.PC.STX

EcoSmart Fire Stix Protective Cover

The Stix is the one fire feature in the range you cover whole rather than lid. This goes over all of it - basket, burner and legs - and weighs less than a pound.

Key features

Over the whole thing
Thirty-one inches tall, so it clears the basket and reaches the feet rather than perching on the top like a shower cap.
UV before rain
The coating is there for sunlight as much as water. Fabric left outdoors fails from the sun first, and that is the failure you notice when you go to use it.
Repels, then dries
Coated Oxford polyester sheds water and dust and dries out afterwards, which matters more than being sealed.
Outdoor rated
Unlike the silicone burner covers, this one is specified for outdoor use only. Indoors it is not doing anything you need.

Specifications

Dimensions22.3 x 22.3 x 31.1 in
Weight0.8 lb
MaterialUV-coated Oxford fabric (polyester)
UseOutdoor
FitsStix

Made for one fire feature and nothing else:

Downloads

[SPEC SHEET DOWNLOAD]

Optional add-ons need JavaScript to be added alongside this product. With JavaScript disabled you can still order the item above, then add any accessories from their own pages.

Questions?

Call (936) 939-6195 or email support@avenzaoutdoor.com.
Monday to Friday, 9:00 AM – 5:00 PM CST.

Stix Fire Pit w/ Ethanol Burner

Stix is a fireplace with a contemporary twist on the traditional campfire, designed by acclaimed Barcelona-based designer Hiroshi Tsunoda. Echoing Tsunoda's signature style of geometric figures, it assembles varying-sized tubular stainless steel “sticks” around a central flame — a visually striking and thoroughly practical hearth for lovers of alfresco living.

Freestanding and chimney-free, with no utility connection required, Stix is simple to set up and reposition as spaces and lifestyles evolve. Its efficient 0.7-gallon ethanol burner holds a bright flame for up to eight hours, and clean-burning bioethanol produces no smoke, fumes or ash. The design is O-TL listed to UL 1370 and ACCC Safety Mandate compliant, meeting existing standards in both the USA and Australia.

Critically acclaimed and used worldwide, Stix took the Good Design Award 2011 at the Australian International Design Awards, DesignEx Best New Product 2011, and the IIDA/HD Award for Excellence in the USA.

Stix belongs to a wider EcoSmart collection built on the same burner technology — every model can be specified in plant-based ethanol for indoor or outdoor installation, or in natural gas or liquid propane for the higher heat of an outdoor setting. Stix itself runs on bioethanol and is certified for outdoor use.

Fire has always drawn people into a circle. Stix gives that instinct a sculptural form worth keeping in view, on a terrace or courtyard too narrow for anything else.

A sculpture by day. An open flame by night. No woodpile, no flue, and nothing to clean up.

Included Accessories

Decorative Glass Charcoal

Decorative Glass Charcoal

Jerry Can 5L

Jerry Can 5L

Lighting Rod

Lighting Rod

Fire Lighter

Fire Lighter

Fuel Efficiency

Volume Capacity
0.7 gal [2.5 L]
Heats on Average
215 ft² [20 m²]
Minimal Room
1,413 ft³ [40 m³]
Thermal Output
5,800 BTU/h · 1.7 kW
Burn Time
8–11 h

Figures are indicative. Actual performance varies with the model purchased, the installation environment, and the composition of the e-NRG bioethanol available in your region.

Specifications

Full Specifications

Full Specifications
Model Stix
Type Fire Pit
Fuel e-NRG Bioethanol
Burner AB3
Burner Finish Grade 304 Stainless Steel
Surround Material Grade 202 Stainless Steel with Black Powder-Coating
Colours Black
Application Outdoor only
Thermal Output 5,800 BTU/h · 6.14 MJ/h · 1.7 kW
Fuel Capacity 0.7 gal [2.5 L]
Fuel Consumption 0.08 gal/h [0.3 L/h] at maximum
Burn Time 8–11 h
Heats on Average 215 ft² [20 m²]
Certification O-TL listed to UL 1370 · ACCC compliant (USA and Australia)
Manufacturer MAD Design Group / EcoSmart Fire

Dimensions

Dimensions
Overall Length 21.9 in [556 mm]
Overall Width 21.9 in [556 mm]
Overall Height 30.7 in [780 mm]
Weight — Complete 30.8 lb [14 kg]

Technical Drawings

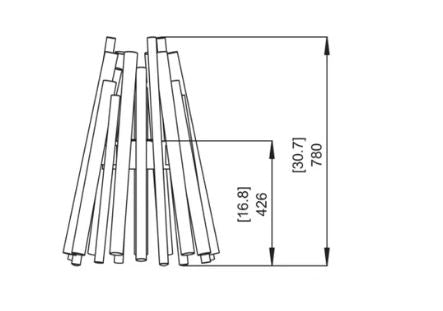

Stix Fire Pit w/ Ethanol Burner — Front View technical drawing
Front View

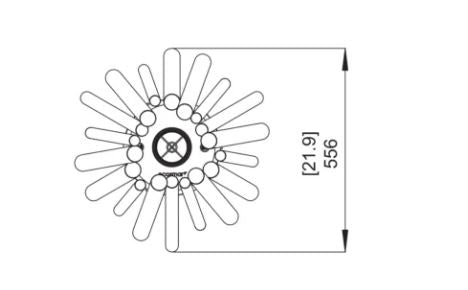

Stix Fire Pit w/ Ethanol Burner — Top View technical drawing
Top View
Stix Fire Pit w/ Ethanol Burner — Side View technical drawing
Side View

Downloads

Read the manual in full before operating the burner. Verify the model's physical dimensions against your cut-out dimensions before installation begins.
